Work Fixture Pallet Conveyors and Integration
Keep every station fed with fixtures and get the empties back without a handoff.

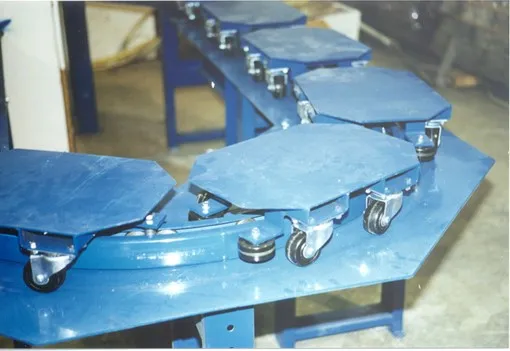

Work fixture pallet conveyors are one of the most common conveyors in assembly: the part rides a fixtured pallet from station to station, and the empty pallet returns to the start. The loop — drive, frame and especially the return path — decides the footprint, the cost and the pace. Conveyability has built these systems for real production programs for decades; it’s work we know as well as anything we do.
Over-under or rear-transfer pallet return, chosen for your floor.
Low-friction belt or roller chain drive systems.
Aluminum or steel frames — steel can trim system cost about 10%.
Combined team member material handling experience.
Fixtured pallets carrying product station to station.
Over-under to save space; rear-transfer to save cost.
Partners & Clients
Tell Us About the Assembly Loop.
The part, the stations, the takt and the space. We’ll text you a link to upload photos or drawings when it’s convenient.
Two Ways to Bring the Pallet Back
The return path is the biggest single decision in the system.
Over-under return
Empty pallets return on a lower level directly beneath the working conveyor — the most effective way to save and utilize the space of your area.
Rear-transfer return
Pallets transfer across and return alongside the line — the most effective way to lower costs, though it uses more floor space.
Two proven drive systems, matched to the pallet and the pace.
Belt or Roller Chain Underneath.
Low-friction belt drives run smooth and quiet and let pallets queue gently between stations; roller chain brings positive engagement for heavier fixtures and harder duty. Either way, the system moves product across a long area in a short amount of time — that’s the job description.
Frame material moves the price about 10%.
Aluminum or Steel — a Real Trade, Not a Default.
Aluminum is the most common frame material for these systems — clean, light and precise. Steel can lower the cost of your system by roughly 10% where its weight and finish fit the environment. We price both honestly and let the application pick.
Can’t Quite “Convey” The Problem? Let Us Take It From Here.
Send us what you know. We will help with the rest.
Text us a photo, short video or controls-screen image. Show us what your team sees when the problem happens. We’ll start there.
“We have been a customer of Conveyability for 15+ years.”
“We have been a customer of Conveyability for 15+ years. They have designed, fabricated, installed, and supported assembly conveyor systems on our largest OEM bumper programs. Their fabrication and build quality is excellent, and their installation support and service has been second to none.”
Jeff BengelVentra — Ionia (Flex-N-Gate)
Get the Conveyability Product Catalog.
Drives, frames, stops and transfer hardware behind our work fixture systems — see what’s standard before the loop gets engineered.
- Conveyor systems for light-duty through heavy industrial applications
- VRCs, mezzanines, pallet handling, sortation & end-of-line equipment
- Multiple manufacturers, one integrator to help spec the right fit
Meet Conveyability: Pallet Conveyor Builder, Integrator, Installer, and Service Provider
A fixture loop touches tooling, stations, controls and takt. Conveyability engineers the conveyor with the assembly process — and supports it for the life of the program.
Aerospace
Automotive
Car Wash
Chemical & Food
Distribution & Sortation
ECommerce
Fabricated Metal
Food & Beverage Processing
Integrators & Machine Builders
Industry 4.0
Conveyability: Your First Call for the Assembly Loop.
Decades of fixture pallet systems on real production programs.
One team of top-tier problem solvers.
Start with what failed and what production is experiencing — not just the replacement part.
Speed, responsiveness and lead-time flexibility.
Service has to fit the urgency, shutdown window and reality of the operating plant.
Value engineering inside the real budget.
Repair what is worth repairing, modify what is causing the problem and upgrade only where the system has truly outgrown the old answer.
Custom plans built around the plant you have.
Legacy equipment, multiple manufacturers and incomplete drawings are normal inputs.
No passing the buck when the interfaces get messy.
Mechanical, controls, fabrication, installation and future support stay connected through one team.
Get Our Conveyor Maintenance Checklist: Catch the Wear Before It Costs You a Shift.
Stops, locators and the return loop are what put a station out of tolerance. The checklist covers what to look at weekly, monthly and quarterly.
- What to check and how often to check it.
- How to spot early signs
- Print once, coverage all quarter.
Need to Get In Touch Now? Give Us a Call.
No hard sell, just experts that know their stuff.
Tell us what is failing, what the plant has already tried and how the issue affects production. We’ll help you figure out the most useful next step.
Work Fixture Pallet Conveyor FAQs
Returns, drives, frames and program life.
What is a work fixture pallet conveyor?
A loop of conveyor carrying fixtured pallets through assembly stations, then returning the empties to the start — one of the most common conveyors in assembly work.
Which return design should we choose?
Over-under returns save the most floor space; rear-transfer returns cost less but use more area. Your floor plan and budget make the call.
Belt drive or roller chain?
Low-friction belt runs smooth and suits gentle queuing between stations; roller chain suits heavier fixtures and harder duty. Pallet weight and duty cycle decide.
Aluminum or steel frame?
Aluminum is the most common choice; steel can lower system cost by about 10%. Environment and precision requirements settle it.
What about the fixtures and pallets themselves?
Locating details, pallet weights and station interfaces are inputs we engineer around, coordinated with your tooling as part of the conveyor design.
Can stations be added after launch?
Loops get modified over program life all the time — added stations, changed spacing and controls updates are normal work.
